Category Archives: Tenma-zukuri chabune 伝間造茶船

Tenma-Zukuri Chabune Display at the Nakagawa Bansho Museum (中川船番所博物館)

Posted on by
Reply

I ran across some images from a Japanese museum in Tokyo’s Koto ward in early May, and I feel like some of my work has been completely validated. This little museum is called the Nakagawa Funabansho Museum (中川船番所博物館), and I know absolutely nothing about this museum. I don’t even know if I’ve heard about it before, though I recognize the Nakagawa, or Naka river, or middle river in Japanese, which flows down from Saitama prefecture through Tōkyō.

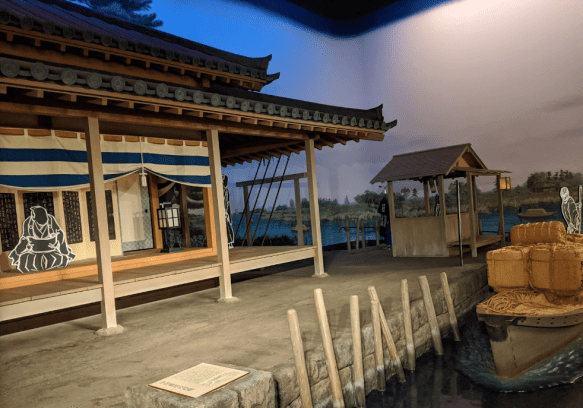

A large display in the museum is a full-sized diorama of a small, fully loaded canal boat that looks like it’s pulling away from the dock. What surprised me was that I recognized this specific type of boat as one that I studied and created a set of drawings.

This is a tenma-zukuri chabune, a small general purpose boat from the canals of old Edo. I’ve seen very little about this boat, outside of a woodblock print in the Funakagami, an illustrated identification guide to river boats that was used to aid the government’s tax assessors.

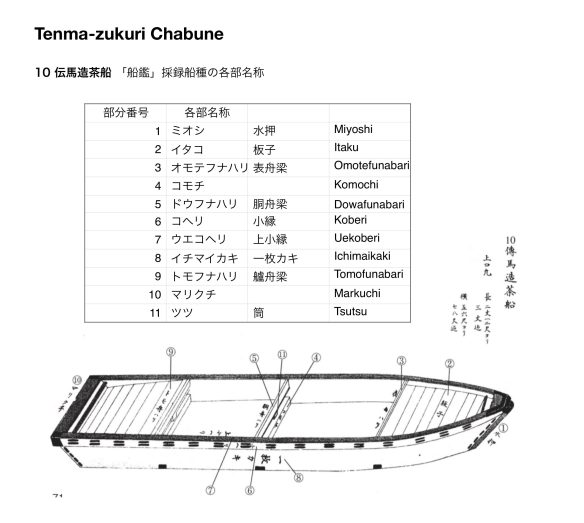

Page from the Funakagami, with my annotations on the names of parts.

Using this illustration, plus some information provided in the book, I came up with a set of drawings that I created in Adobe Illustrator.

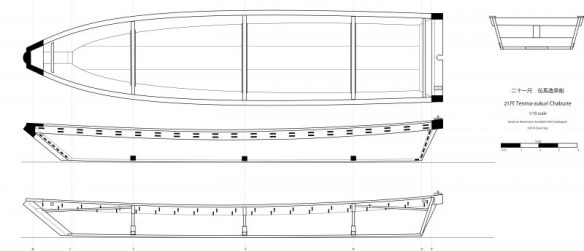

My own drawings based on the Funakagami illustration and provided dimensions.

There are some variations from the museum display, but all the details mostly seem to match. I will consider some modifications that I might make to the drawings, but I’m very confident with them, especially now that I’ve seen this museum display.

The drawings have been used to make at least two models: My 1/20-scale model and one by Japanese modeler Kouichi Ohata, who built a beautiful 1/10-scale model. Kouichi-san’s model actually came before mine, and he provided some great feedback that helped me improve the drawings from their original version.

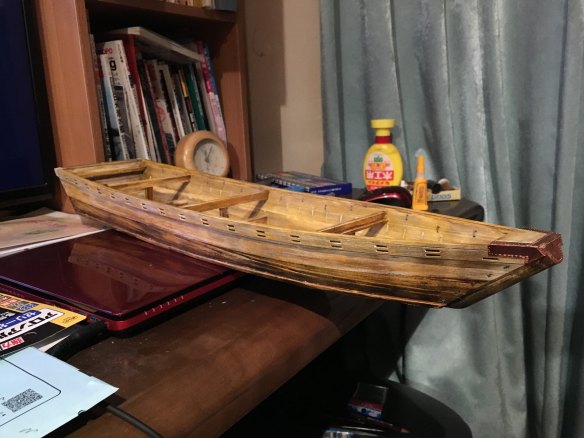

My 1/20-scale tenma-zukuri chabune

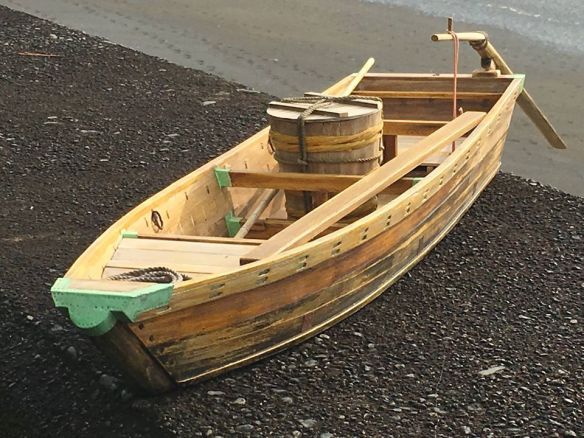

1/10-scale tenma-zukuri chabune by Kouichi Ohata

This is the first time I’ve researched a particular boat type and created a set of drawings based mostly on the interpretation of a woodblock print. While I knew I had the basic dimensions right, I never really new for sure if my interpretation of all the details was correct.

Seeing this museum display is not proof that I got everyhing correct, but at least it shows me that whoever was involved with the creation of this museum display agrees with my interpretation of this boat. That means a lot to me, given how separated and independent my study of wasen has to be.

So, I look forward to visiting this display at some point after Covid concerns have lightened up. In the meantime, perhaps I should pick another subject to try to illustrate and model. Ω

Building a Tenma-Zukuri Chabune (伝間造茶船) – Part 5 – Final

Posted on by
1

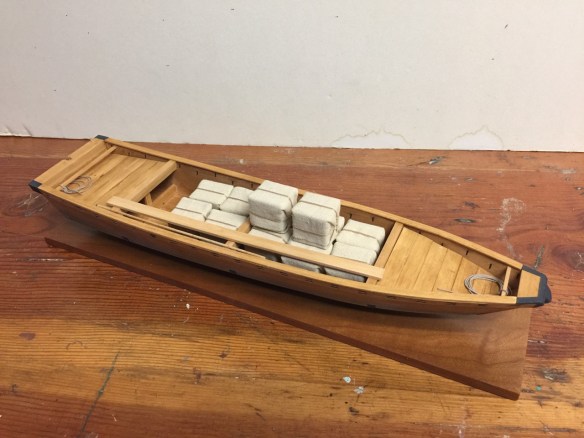

First off, my apologies for taking so long to post an update on this project. The Tenma-zukuri Chabune is actually done. It sat for a long time with all the construction work done, needing only the coppering detail. I finally got the nerve to get back to it and it is now finished. But, when I last posted, there was still work to do, so let me take a step back to go over what was done.

Last we left off, the nail mortises had been cut and I was ready to add the decks at the bow and stern, or the omote and the tomo.

I don’t know if the boards that make up these decks were removable. Underneath, I left the ends open, so things could be tucked in there for storage, but only for smaller things, as the support posts of the beams cut the openings in half. If the deck beams were removable, there should be finger holes in at least some of the deck boards, so they could be easily lifted up. Sometimes, there was also a V-shaped pattern inscribed across the boards to make it easier to identify which boards go where. This is less important at the bow, where the boards lengths vary greatly, making them more easily identifiable as to which one goes where.

At 1/20 scale, I decided to keep things simple and didn’t add either finger holes or the alignment inscription. This would be more important on a larger scale model, like 1/10 or 1/15. So, adding the deck boards was just a matter of laying them down.

Continue reading →

Building a Tenma-Zukuri Chabune (伝間造茶船) – Part 4

Posted on by
Reply

Uwakoberi, Koberi, and Iron Nails

So, with the koberi in place, I added the small deck at the bow and the ōtoko at the stern. I’m trying to find out the term for these small decks, which are more like steps. On the Hozugawa boats, the small deck at the bow is called omote-amaose. But, that’s an entirely different region, so I expect the term in Tokyo/Edo would be something quite different.

I also added the uwakoberi, which is what in the west, one would refer to as the gunwale or caprail. Each was made from a single piece of wood, wide enough to cover the edges of the hull planking and rub rail. I made mine a little wider, so that there is a slight overhang on the inboard side.

On tenmasen, the uwakoberi could be quite wide, serving as a walkway for the boatmen. I wanted to keep true to the Funakagami print, so I didn’t go too wide on this. Also, I had a hard enough time putting a bend in the wood. Any wider would have just made this task more difficult.

Continue reading →

Building a Tenma-Zukuri Chabune (伝間造茶船) – Part 3

Posted on by
Reply

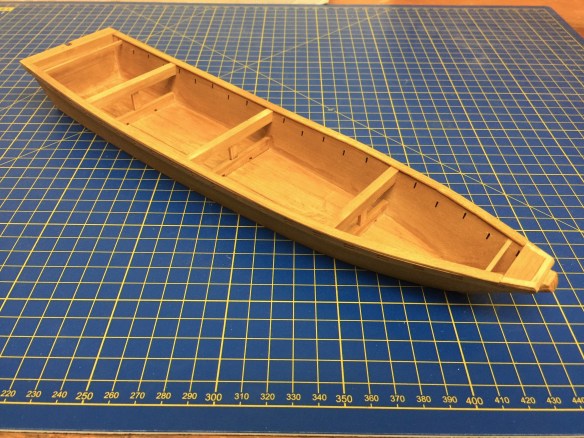

Construction of the model continues as I’ve been working out how I want to tackle some of the details on this 1/20-scale model. The major issues to deal with are the copper mortise covers and other copper detailing as well as the detailing of iron nails used to fasten the koberi, or rub rail, plus wire nails used to fasten the uwakoberi, or the caprails. Some of this is quite simple.

Below, I’ve posted a photo of Japanese modeler Kouichi Ohata’s Tenma-zukuri chabune. He has been helpful in the adjusting of the design of the drawings and has completed a model based on the drawings.

His model is built at 1/10 scale. I may eventually build one at this scale, but for now, I’m happy building mine in 1/20 scale, and I’m considering building other wasen of the Funakagami in 1/20 scale also. It saves on space!

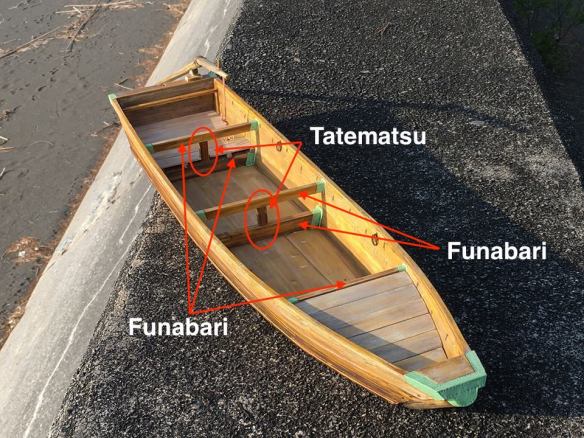

Photo of Japanese modeler Kouichi Ohata’s 1/10-scale Tenma-zukuri chabune based on my plans, with a few modifications and added details.

Continue reading →

Building a Tenma-Zukuri Chabune (伝間造茶船) – Part 2

Posted on by
Reply

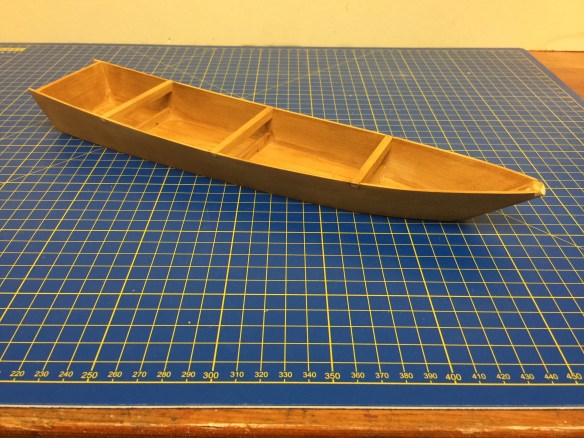

In my last post, I discussed the building of a tenma-zukuri chabune from the Funakagami, and I stated that I was working on my model, but didn’t actually talk about building the model. The fact is that I wasn’t sure about what scale to build it at, given that a 1/10-scale model would end up being a little over two feet long, and I’m running low on space to display or store my models. So, I started a 1/20-scale model to see how I’d feel about the smaller scale.

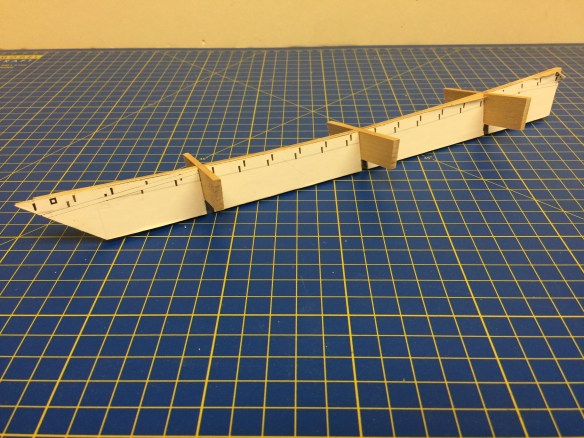

I began by making a temporary internal frame. This would allow me to build the shiki, or bottom, and add the miyoshi, or stem, and the todate, or transom, at the proper angles. The same goes for the tana, or hull planks.

The longitudinal member of the framework is shaped directly from a copy of my plan drawing. The cross pieces are located at positions of the funabari, or beams, and are shaped according to my drawings.

Continue reading →

Building a Tenma-Zukuri Chabune (伝間造茶船) – Part 1

Posted on by
Reply

I completed what I believe is a good final draft of the Tenma-zukuri Chabune from the Funakagami, and I’m now working on my model. However, it appears that I am already late to my own game. Model builder Kouichi Ohata has already completed his model in 1/10 scale, and he’s done a beautiful job with the boat as well as with all the added details!

Kouichi Ohata’s model

With the help of fellow modeler Kouichi Ohata and my mentor Douglas Brooks, I’ve gone through several revisions of the plans – seven major ones, so far.

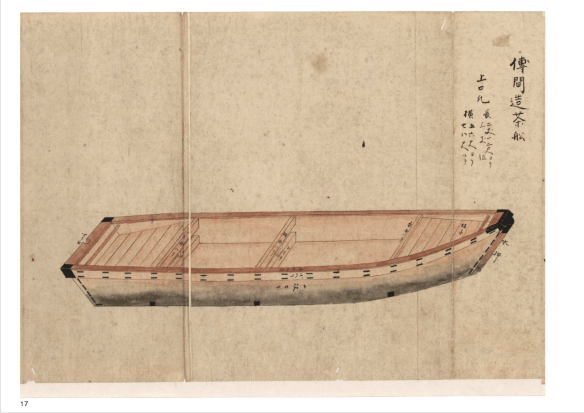

Tenma-zukuri chabune, from the Funakagami.

The biggest difficult has been in analyzing the single wood-block print of this type. Compared to other boats in the Funakagami, this one has a very flat bottom, showing no real rise at the stern, which may be possible, but it’s really throwing people, as it seems very unusual for a Japanese style boat. Continue reading →

Tenma-Zukuri Chabune (伝間造茶船)- Plans Reconstruction Update

Posted on by
Reply

Work on the drawings of the Tenma-zukuri chabune continues. Over the past months, I’ve been making changes to my drawings of this wasen that I found in the the Funakagami. With the help of fellow modeler Kouichi Ohata and my mentor Douglas Brooks, I’ve gone through several revisions of the plans – seven major ones, so far.

Tenma-zukuri chabune, from the Funakagami.

The biggest difficult has been in analyzing the single wood-block print of this type. Compared to other boats in the Funakagami, this one has a very flat bottom, showing no real rise at the stern, which may be possible, but it’s really throwing people, as it seems very unusual for a Japanese style boat.

Also, if you look at the near side of the boat, particularly the bottom, it doesn’t appear to show any inward curvature. This threw me initially, as this is, again, pretty unusual. It’s not impossible, as the hozugawa boat I built doesn’t have any inward curvature at the stern either. But, looking more closely, at the far side, you can clearly detect inward curvature at the stern. The lack of curvature had bothered some people, so I’m glad I could spot some in the image to justify it on my drawings.

Continue reading →

Tenma-Zukuri Chabune (伝間造茶船)- Plans Reconstruction

Posted on by
Reply

Back in March of this year, I was digging through the images of the wasen recorded in the Funakagami. This, as you might recall, is a book put together in 1802 to identify the different boat types in use on the waterways of Edo for tax collection purposes.

There was an excellent short article that appeared in issue number 82 of The Rope News about a talk given in 2014 by Mr. Iinuma, who was the curatorial director of the Museum of Maritime Science in Tokyo. The talk focussed on the Funakagami and the boats described in it. Here’s a link to it if you haven’t seen it: The Rope News, No. 82

I’ve been looking over the 33 boats shown in the book, trying to find a subject that I felt I could model. Unfortunately, I’ve found no technical drawings for any of these boats. But, there was one that piqued my interest, as it’s name became more meaningful as my Japanese language skills improved. That boat was the Tenma-zukuri Chabune. Continue reading →
