Category Archives: Hozugawa Ayubune

A small net fishing boat from the Hozugawa, a fast, scenic river, which feeds into Kyoto from the mountains to the Northwest. This is a simple wasen design that is featured in several blog posts by Douglas Brooks.

Building a Hozugawa Ayubune Model in 1/10 Scale – Final

Posted on by
Reply

This is the completion of my 1/10-scale model of the 15-shaku ayubune. This began with the cutting of the beams. I made the smallest beam at the bow, called the tsunatsuke, 1.5-sun square. The other two main beams I made 3-sun wide and 2.5-sun thick. I didn’t have any sugi of the necessary thickness, so I had to use two pieces glued together. I put the seam on the side of the beam in hopes that would make it less visible.

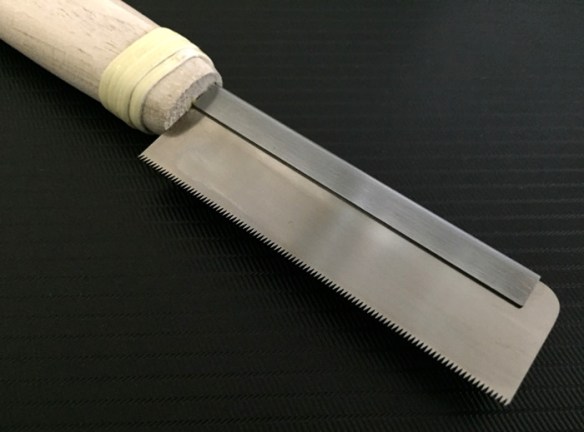

I used the beams as a guide to help me size the cutouts in the hull, which I cut with my Japanese Hishika, Super Fine Cut Saw, that I got from Zootoyz. It worked really well for this.

I found a supplier with the exact same saw in the U.S., but the cost for the saw was more than what Zootoyz charges, even when you add the international shipping. The one thing with this saw is that it cuts so easily, you have to be careful not to cut too much. For the final trimming of the notches, I used a scalpel.

First, I notched out the hull for the bow platform, called the omoteamaose, and the stern platform, called the tomoamaose. These were the easiest to deal with, since they are at the ends of the boat. So, I dealt with these first.

It was simple enough to add the omoteamase using a 3mm wood. I pre-cut the piece to roughly the correct size by inserting the piece into place and tracing out the extents in pencil. I could then glue the piece into place and sand away any excess using a large sanding block. Continue reading →

Building a Hozugawa Ayubune Model in 1/10 Scale – Part 5

Posted on by
Reply

Progress continues with my 1/10-scale model of the 15-shaku boat used on the Hozu river, northwest of Kyoto. I’m 6 months into the build, but I have certainly not spent a great deal of time in actual construction. Mostly, I’ve been contemplating how I was going to accomplish each task of the build. Things are progressing quickly now.

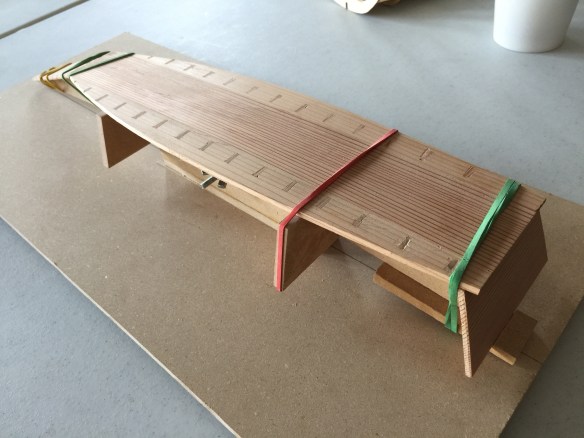

Ayubune model with former clamped to the baseboard fixture

With the new fixture holding things in place, I taped a piece of cardstock into place to trace the shape of the hull planking. I rough marked the outlines of the bottom, bow plank, and transom on it. The planking will be cut oversized, so getting the exact shape isn’t really necessary, except to make sure that the wood I cut is large enough, but not too wasteful of my limited wood supply.

Next, I cut four straight strips of 3mm sugi on my table saw about 1 shaku wide and 16.5 shaku long. There are two hull planks on each side of the boat, but unlike many other wasen designs, the planks fit flush together, so the sides of the boat are perfectly flat. So I glued up the planks into two side-by-side pairs.

Continue reading →

Building a Hozugawa Ayubune Model in 1/10 Scale – Part 4

Posted on by
Reply

Something I didn’t mention last time was that I had cut a paper pattern for the shiki and rubber-cemented it to the assembled . I then cut the wood to the pattern. Since the plans I have show the lines to the inside of the planking, I left the pice a little long at the aft end, as the bottom extends slightly beyond the transom.

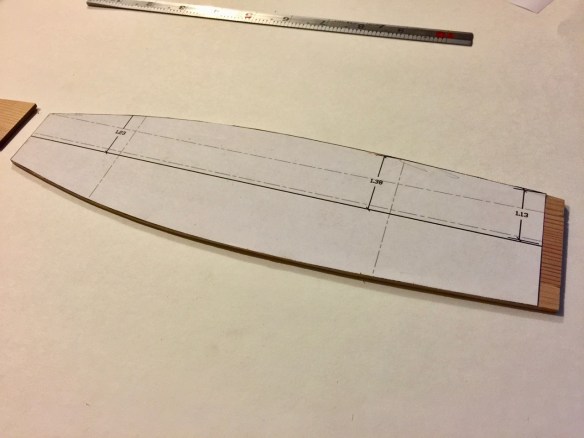

Shiki with pattern, and cut to shape, with extension at the aft end

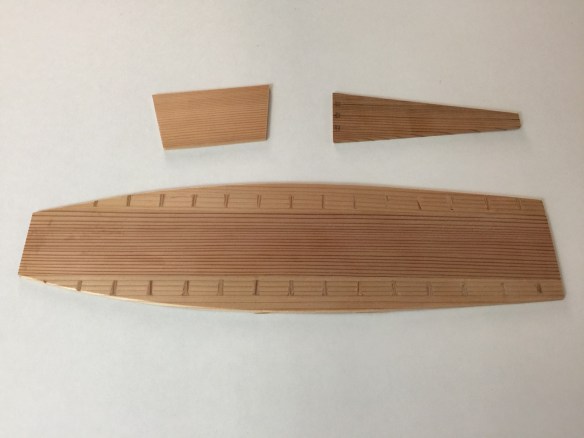

The final pieces are ready for assembly. As on the real boat, the hull planks will be shaped in place. Note that I also cut mortises for the bow plank, which I’m told is called the omote no tate ita. I’m going to have to find the kanji to make sure I know what this really means. The same goes for the transom, or tomo no tate ita, but in other regions is called the todate.

Continue reading →

Building a Hozugawa Ayubune Model in 1/10 Scale – Part 3

Posted on by
Reply

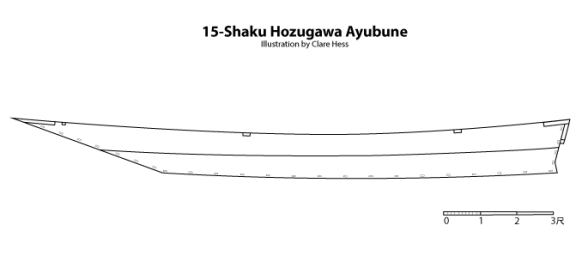

My illustration of the ayubune, based on plan drawing by Douglas Brooks (with his permission). Position and size of details shown here are only approximate.

Counting up all the major planks, transom, and beams, this Ayubune model will be made up of only 17 pieces:

  • Shiki (bottom) – 3 pieces
  • Omote no tate ita (bow plank)
  • Todate (transom)
  • Tana (hull planks) – 4 pieces, 2 on each side
  • Omoteamaose (bow platform)
  • Tsunatsuke (lit. rope attachment) – Bow beam
  • Omote no funabari (forward beam) – 3 pieces
  • Tomo no funabari (aft beam)
  • Tomoamaose (stern platform)
  • Transom Strake

In addition to these, I made patterns in paper for obtaining the proper angle for the lay of the hull planking. I have yet to decide at this point just how I’m going to fix the hull planks to that angle. But, there’s time before that needs to be deal with.

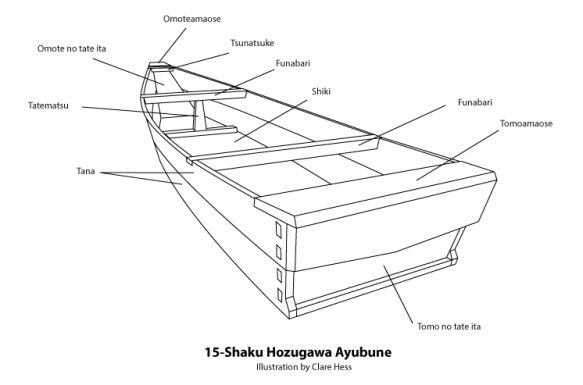

My second illustration of the ayubune. I’ve labeled most of the parts here, but haven’t been able to get the names of all of them yet.

Continue reading →

Building a Hozugawa Ayubune Model in 1/10 Scale – Part 2

Posted on by
1

The ayubune is not my first Japanese boat scratch build attempt. The first was the Urayasu bekabune, a boat designed for working among the seaweed nets of Tokyo Bay. But, being unaccustomed to scratch building Japanese traditional boats, I was wresting with a few construction problems and a couple errors, so I set it aside. Then, I found the ayubune on Douglas Brooks’s blog.

The ayubune is a very simple design. There is no cutwater, the side are flush, making for a very simple shape, and there few details beyond the hull and beams. This seemed to be an ideal subject to start with.

Mr. Brooks recorded 3 sizes of ayubune in Japan, a 24-shaku, 18-shaku and a 15-shaku boat. I noted that he built at least 3 of the 15-shaku boats and posted photos and notes on their construction. At a traditional 1/10 scale, the 15-shaku boat would be just about 15″ long, which seemed like a good size.

Large, 24-shaku fiberglass ayubune usee to give river tours to tourists on the Hozu river.

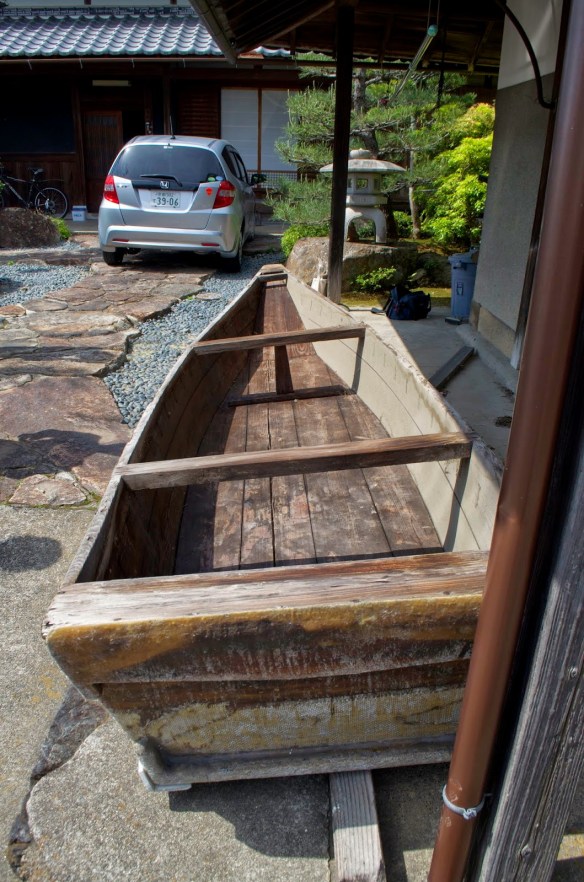

15-shaku ayubune on which my drawings are patterned. Photo courtesy of Douglas Brooks.

Continue reading →

Building a Hozugawa Ayubune Model in 1/10 Scale

Posted on by
1

There are a lot of potential wasen subjects to model, but good plans are difficult to come by. Also, when decent drawings are found, it’s often difficult to find or to understand the details of the subject. I’ve been toying with a lot of different possible model building subjects, but would usually run into some issue that kept me from pursuing it further.

Recently, I sort of re-discovered a subject that I seem to have overlooked before. It is a boat that Douglas Brooks wrote about in past blogs from about 3 years ago, when he was building a boat in Kameoka, Japan, which is about 16 miles west of Kyoto. There, he built a Hozugawa Ayubune, a type of simple fishing boat that was used on the Hozu river.

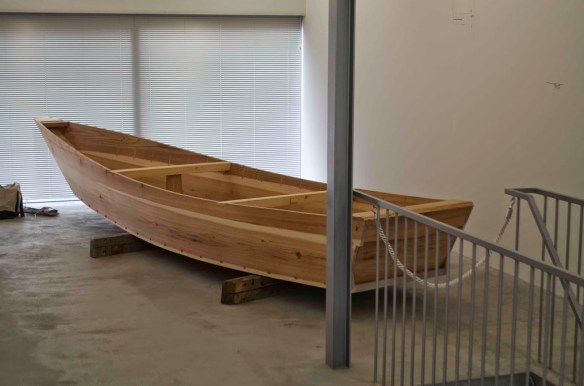

15 shaku Ayubune built by Douglas Brooks in Kameoka, Japan, in 2014. Photo courtesy of Douglas Brooks.

Continue reading →
