One of the features of this model is something that appears on many Japanese wooden boats, and dealing with it has been on my mind since this project began. I’m talking about the mooring bits, called the kanzashi. On this boat, they are tapered square posts with a faceted knob at the end.

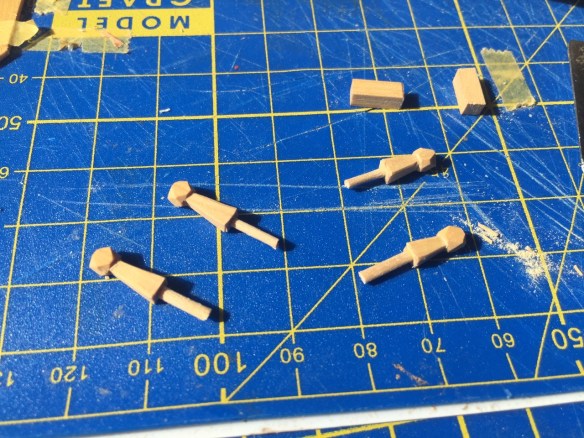

On the real boat, these were made of honiki, but for a 1/10 scale model, I decided to use a harder wood that I have on hand, some Castello boxwood, which I use in ship modeling all the time, as there is no grain, has a nice tan color, and carves beautifully.
As it turned out, these were pretty easy to make. So much so that I made a pair and decided they were too short and quickly made another pair.
These were large enough that, rather than trying to carve a post to fix them into the mooring beam, I drilled them out and inserted very small birch dowels. These then fit easily and securely into holes drilled into the mooring beam.

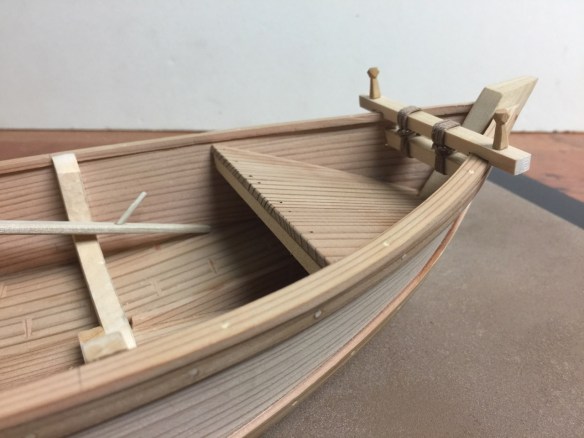

The final stage was to lash the mooring beam down to the bow beam directly underneath it. This I did using some excess rigging line from a completed Woody Joe kit. I took about 6 turns around the beams and then wrapped around the waist of the lashing and tied off. I then secured the knot with a little glue and trimmed off the excess line. This holds the mooring beam very securely.
Since we’re still under the stay-at-home order and I have time, I’m plowing ahead with the Himi Tenma. I did manage to get some measurements from Douglas Brooks, but mostly, to verify that my beams are fairly close. Not all exactly like the boat built last Fall, but close enough for this project.

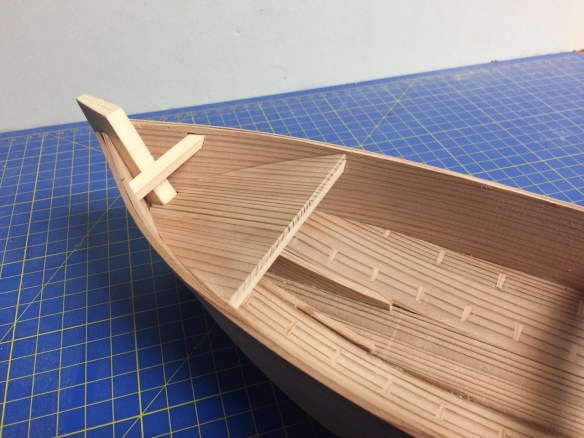

With the beams, or funabari, in place, I went ahead and added the decks at the bow and stern. I don’t recall off hand what the term is for the stern deck, but the bow deck is called the kappa. I fit both decks by first making a templates that I cut to fit as best I could in place of the planks.
I cut three planks to make up each of the decks. For the stern deck, I installed a simple strip of wood onto the transom, or todate, to serve as a shelf for the lower plank ends. That wasn’t necessary at the bow, due to the shape of that deck, which held the planks in place better.
The aft deck turned out well, but I realized later that the bow deck angles downward too much, and is probably smaller on the actual boat. But, it looks fine and I don’t really think there’s any need to redo it.

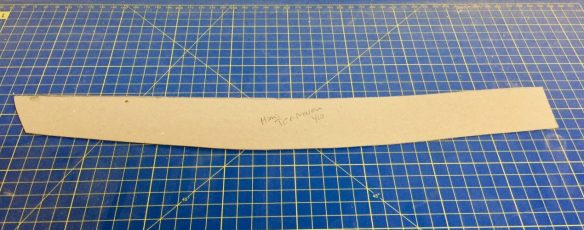

I started working on planking the hull of the Himi Tenma shortly after my last post. The first thing to do was to cut a cardboard template to the approximate shape of the hull plank.
This was done by taping a piece of cardboard into place on the model. The bottom edge was traced with a pencil onto the cardboard. The shape at the bow was approximated, and the stern end was cut off a little bit long. The top edge was derived by marking the top edge at the ends of the model. I then used a thin wood batten to create a fair curve and traced that shape onto the cardboard template. The template really does not need to be very accurate. It just has to be big enough to work, and a bit oversized is best.
The template can now be used to help select the wood. I try to be efficient as possible and find a way to get two planks out of the smallest sheet of wood that will work, since the wood I’m using is hard to come by.

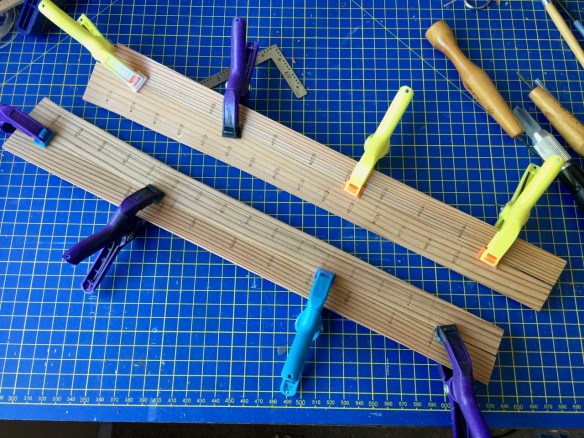

I’m making decent progress on the Himi Tenmasen model and am now working on the kanjiki planks. These are the bottom planks located either side of the heavy, central bottom plank, called the chyou. As I mentioned before, my model will have two kanjiki planks on each side, much like in the tenma drawings, though the boat built last fall actually only used one plank per side. But, this way allows me more efficient use of my wood supply, and if I screw up a plank, I lose less wood. And, while it means more mortises to cut, it also means there is more detail on the model.

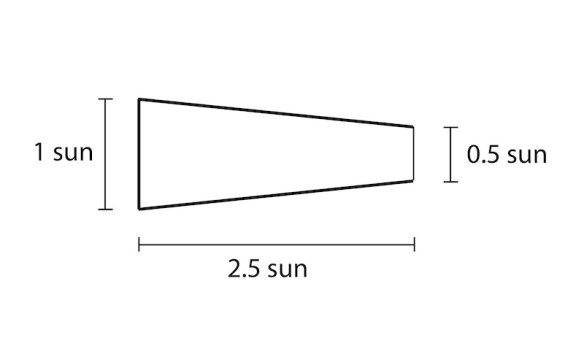

Measurements of mortises given are at full size.
Reviewing photos of the Himi Tenma that Douglas Brooks worked on last Fall, I’ve been comparing them with the drawings from the Himi City Museum. There are a number of differences which I’ve marked on a copy of the drawings.

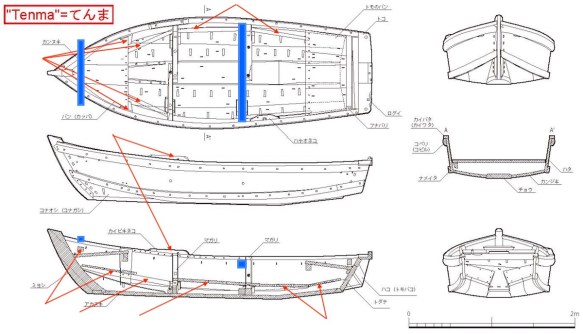

Modified copy of the Tenma drawings provided by the Himi City Museum, shown here with permission of the Himi City Museum.
To match the Himi Tenma built last Fall, the features that I’ve marked with red arrows will need to be omitted from my model. The blue rectangles represent the approximate size and location of beams which will need to be added to the model.

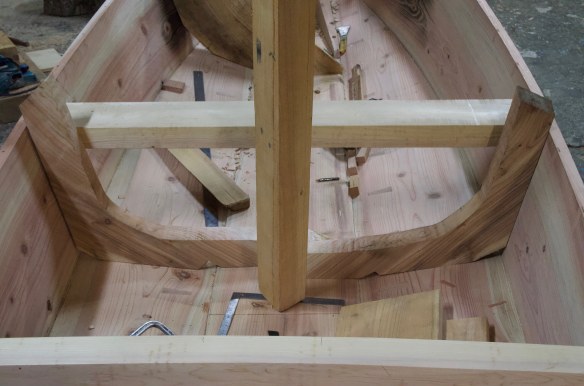

Photo showing the positioning of the overlapping frames. Photo courtesy of Douglas Brooks.
In addition, the other main difference is that if you look at the frames in the drawing, they are offset so that the starboard frames aren’t directly across from the port side frames. However, in the boat built last Fall, the tops of the frames actually sit directly across from each other, but since the frames still overlap one another, they are canted slightly. For now, I’m just making a mental note of these things, and will deal with them when the time comes.
You might recall that In the Fall of 2019, boat builder Douglas Brooks had developed a project together with Nina Noah of an organization called The Apprenticeshop, to go to Japan and build two traditional Japanese boats with two different Japanese boat builders.
I wrote about modeling the first of the two boats, the Niigata Honryousen, which he had built with Mr. Nakaichi Nakagawa and Nina Noah. But, it’s the second of the two boats that was the main subject of the project. The second boat was the Himi Tenmasen.
Photo by Ben Meader
The Himi Tenmasen, or Himi Tenma, was built by Douglas Brooks and Nina Noah, under the guidance of Mr. Mitsuaki Bansho, a Japanese boatbuilder who was the only one of five brothers to follow in his father’s trade, who was also a boatbuilder. After his father’s passing, Bansho-san primarily built fiberglass boats, but in the past 20 years, he began building boats in traditional Japanese fashion for museums.
The Himi Tenmasen is a typical small boat that was used in fishing and as a general workboat. Similar types were used to ferry cargo and passengers between larger ships and the shore.
The first treasure of my recent Japanese book buying binge arrived late last week. The book is in Japanese and is called Toyama no Wasen, which means Toyama’s traditional Japanese boats.
This is a beautiful book and it is loaded with drawings. I flipped through it and counted about 30 boats detailed in drawings, though some drawings offer more details than others. Also, some of the rice field boats are little more than floating wooden tubs that are pushed or pulled through the fields by the farmer.
This book appears to be a 2011 publication by the Himi City Museum. I found my copy through Yahoo! JAPAN Auctions. I haven’t seen it listed even on Amazon Japan. I suspect it normally purchased directly from the Himi City Museum and, as it’s a museum publication, isn’t going to be found anywhere else.
