Category Archives: Woody Joe

Building Woody Joe’s Atakebune Kit – Part 4

Posted on by
1

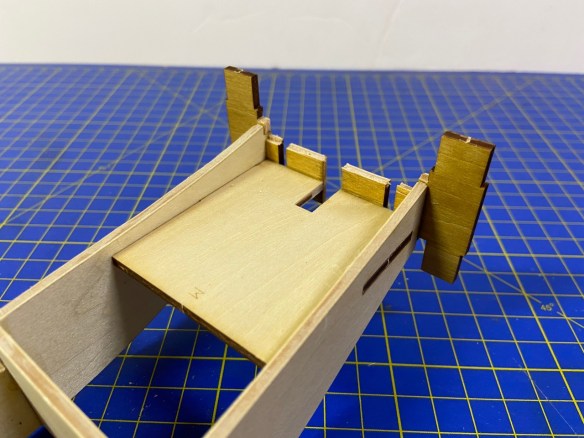

As you may recall from my previous post on this build, I was mentioning the planking of the  deck of the “steering well,” for lack of better term, that’s at the rear of the large top deck of the Atakebune. After expanding the slot in the deck for the rudder, I extended the slot into the back wall. I then commenced planking the deck using some 1mm thick wood I have on hand.

Now, you may notice that the upper part of that back wall is missing too. That’s because I want to create an extended wall that rises up through the deck and separates the main deck from the little section aft. This is a feature that appears commonly on larger Japanese watercraft I’ve studied, namely the bezaisen like the Kitamaebune and Higaki Kaisen. The reason for the separation is mostly because is wall is really the “main” wall. The area behind this is more of an add-on extension.

Continue reading →

Building Woody Joe’s Atakebune Kit – Part 3

Posted on by
Reply

I’ve spent quite a bit of time working out some of the modifications I’m going to be making on this kit. Some things that I might like to do would require some re-engineering and re-fabricating some of the wooden parts, so I don’t know if I’ll go that far here. Of course, I have a second kit, and I make try those ideas there. But, for this model, most of the modifications are going to be fairly simple.

Continue reading →

Building Woody Joe’s Atakebune Kit – Part 2

Posted on by
Reply

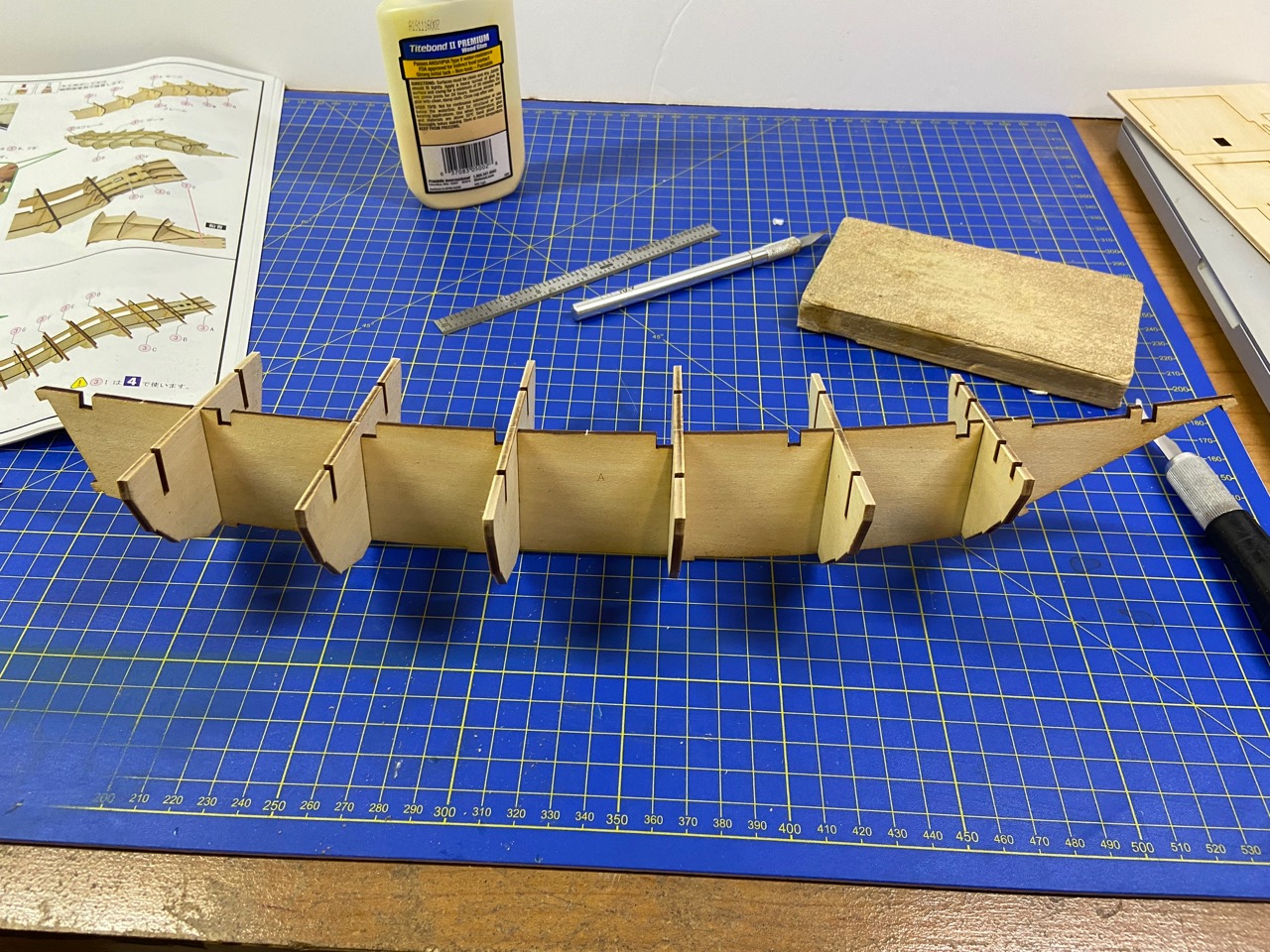

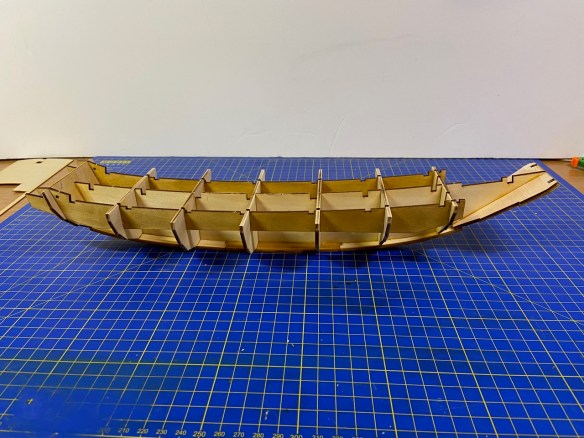

I’m taking it easy on getting this new model kit started. Last time I posted, I really only had cut out the initial parts I needed and then dry-fit them together. This week, I glued together the basic hull frames, using machinists squares to check and set alignment. I used Titebond wood glue for this work.

I spent a lot of time trying to decide what I wanted to do with the bow and transom pieces. These pieces have holes in them that alignment tabs in the keel piece will lock into. The thing I don’t like about this, is that they are then visible on the finished model. As far as I can tell, there are 5 tabs total that will be visible on the completed model, as designed.

Since I’m dying the wood, these tabs shouldn’t be as noticeable as on a kit built straight from the box. Still, I’ve considered solutions, and one is to thickness sand the bow and transom pieces down by 1mm, then use 1mm sheet wood to cover them. The covering wood will have no holes in it, so no tabs will be visible. In order that everything still fits together, I will have to file the tabs down by 1mm. Continue reading →

Building Woody Joe’s Atakebune Kit – Part 1

Posted on by
2

The Atakebune is the subject of a new kit from the Japanese wooden kit manufacturer Woody Joe. It’s something that I, Kazunori Morikawa of Zootoyz, and a few others were actively petitioning Woody Joe to produce. There was hesitancy on their part as there is actually very little solid information on the construction of these largest of Sengoku Period Japanese warships.

Continue reading →

Atakebune Kit Now Available

Posted on by
1

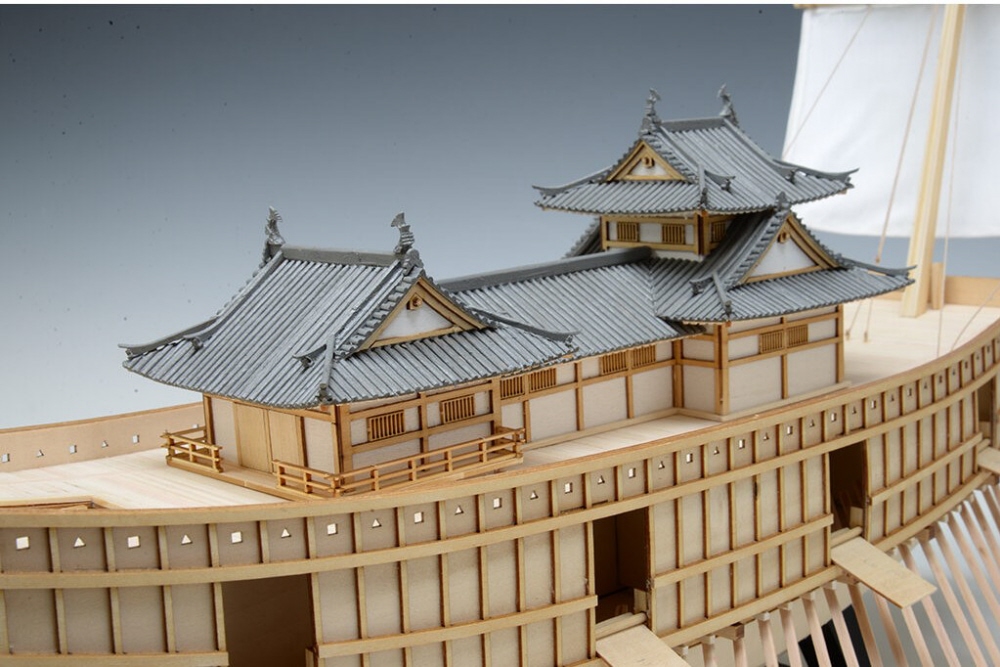

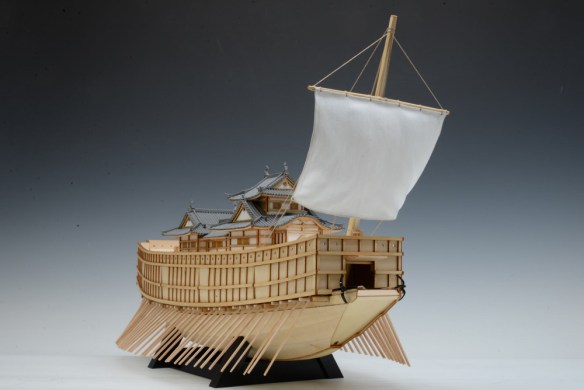

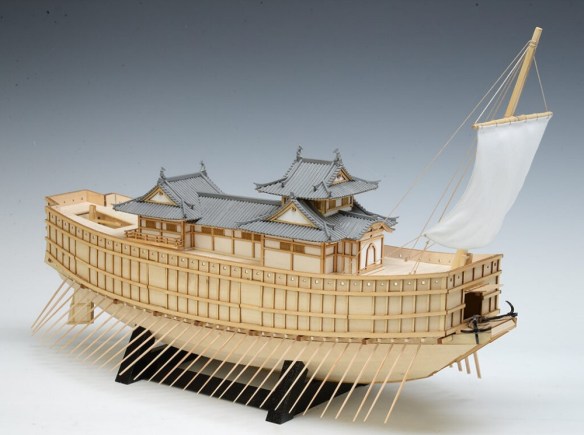

Woody Joe has officially announced the release of their new Atakebune kit. This kit is based on the model at the Saga Prefectural Nagoya Castle Museum, which is located near Fukuoka, Japan. That model represents a large Atakebune, which was the largest class of warship used by the Japanese armies during their warring states period.

The 1/100-scale kit sells for ¥38,000, which at the current exchange is about $335. Woody Joe will begin shipping the kits to resellers this coming Sunday, October 31st, but you can place your order now.

Japanse online hobby deal Zootoyz has the kit listed here: https://www.japan-wooden-model-kits-zootoyz.shop/contents/en-us/p25066.html

From the kit photos, the model looks a little on the simple side, but that just leaves room for some good detailing. As posted before, the dimensions of the kit are: Length 490mm Width 230mm Height 310mm (overall, including oars and stand).

I have two kits on order, which will hopefully arrive within a couple weeks. I’ll post a brief out of the box review when I get them. Ω

Atakebune – Japanese Warship Kit in Development

Posted on by
1

At last, it’s happening. After some enthusiastic petitioning by Kazunori Morikawa, myself, and others to the Japanese wooden model kit maker Woody Joe, it appears the company is actively developing the prototype for an Atakebune.

Museum model of an atakebune

For those who don’t already know, the Atakebune is the largest class of warship used by the Japanese feudal armies of the warring states period. These lumbering ships were effectively floating fortresses. While they were equipped with one large mast and square sail, as well as a  single bank of oars, they were often towed by smaller warships.

Museum model of a large atakebune

I’ve had a number of people ask me about the availability of an Atakebune kit. Up to now, there hasn’t been much  available in the form of a well researched scale model kit. But, yesterday, Woody Joe posted a photo on their Facebook page, announcing that they’ve started working on a prototype model.

The new model is 1/100 scale, and it’s only a prototype, so we won’t know if it’s going to go into production yet. I’m a bit disappointed that the model is not 1/72 scale, as that scale would then match Woody Joe’s Higaki Kaisen and Kitamaebune kits, plus it would then be compatible with 1/72 samurai figures that are currently available.

However, a 1/72 scale model would almost 40% larger than a 1/100 scale model. And, considering these were large ships, that would be a big kit that might be harder for company to manufacture. Also, such a large model may be less appealing in Japan, which is their primary market.

I don’t know any more details yet, but will post them as soon as I learn more. Ω

Kitamaebune – Another Kit from Woody Joe

Posted on by
Reply

Not sure when I’ll have a chance to start this, but I recently broke down and ordered another kit from Zootoyz.jp, Woody Joe’s Kitamaebune kit.

This is the company’s latest wasen model kit offering, but has actually been out on the market for quite some time. The release date was February of 2016, I believe. But, I’ve been too busy with other projects to pay too much attention. Finally, with all my Japanese models on display for a month, the emptiness at home must have gotten to me (that and some extra money I’ve managed to set aside), and I ordered one from Japan.

The postman is very accustomed to delivering these EMS packages from Japan.

Continue reading →

Woody Joe’s Old Sengokubune and Kitamaebune Kits Now Collectors’ Items

Posted on by
Reply

Before the advent of laser cutting, Woody Joe made two bezaisen kits, the Sengokubune and the Kitamaebune. Both were described as 1/30 scale models, but were in actuality about 1/60 scale. These kits were supplied with milled wood parts, wooden sheets, strips and dowels. Construction was more what one would expect from a wooden model kit.

Woody Joe’s old Kitamaebune kit.

Woody Joe’s new 1/72-scale laser-cut Kitamaebune kit.

Continue reading →

Higaki Kaisen Article Part 3

Posted on by
Reply

The third and final part of my Higaki Kaisen build article is out with the latest issue of Seaways’ Ships in Scale. While I was actually relieved to see the previous article, so those building the kit would have the information I’m trying to pass along, it’s kind of sad this time around. Though I’ve had other multi-part articles published in the magazine, I’d really like to keep writing about this kit to generate more interest in this and other Woody Joe kits.

Of course, there are other Woody Joe kits to write about. It’s been my plan to write about building the Hacchoro with modifications based on my visit to the replica boats in Yaizu harbor. But, it takes time and I have other projects I need to be working on. So, finding time for that one will be a bit rough.

But, at least all the information on the kit is in print, and hopefully, interested model builders will take advantage of the information, go out and buy the kit, and have a fun and successful build.



Of course, I’ll keep posting info about this and other traditional Japanese watercraft here. So, stay tuned!

Higaki Kaisen Article Part 2

Posted on by
Reply

Yesterday, I received the latest Ships in Scale, the May/June 2017 issue containing part 2 of my Higaki Kaisen build article.

I’m kind of relieved to see this one. While the first part of the article discussed the background of these ships in detail, it didn’t talk at all about the kit. The problem was that seeing the model, some people would certainly be tempted to go out and buy the kit without knowing more about it, and if they didn’t read the article and the editorial on it in the previous issue, they might not have noticed that the instructions are only in Japanese, which is partly the motivation for writing the article. So, now that it’s out, I feel a lot more comfortable about it the article series.

This issue includes my list of what to watch out for in the building of the kit, including which steps contain cautionary notes written in Japanese, and what those notes say. It’s a relatively short section compared with the last issue. That’s probably good, because those not building this kit will probably find the reading quite dry. Based on this installment, I’m guessing that there will be two more parts to the series, but possibly three depending on the editors.
