Utasebune 打瀬船 Fishing Boat – 1/72 Scale Model from Paris Drawings – Part 5

Posted on by
Reply

Detailing of the Utasebune model continues. It still doesn’t show much change, but I’ve spent many hours on it. The primary addition are the mortise cover plates that line the hull.

As with other models in this scale, I’ve found that I could use my Silhouette Cameo 3 vinyl cutting machine to produce permanent adhesive backed vinyl to simulate the copper plates that would have covered the nail mortises on the real boat. These would darken and might actually turn a greenish hue. I think these were sometimes painted with coating of lacquer to protect the copper. On my model, I used a dark brown vinyl to simulate the “old copper penny” look. Continue reading →

Utasebune 打瀬船 Fishing Boat – 1/72 Scale Model from Paris Drawings – Part 4

Posted on by
Reply

While it may not look like a lot, I managed to do some detailing of my Utasebune model this week. At this point, the changes are on the subtle side, since all the structural work is mostly done.

I’m ready to add the uwakoberi, which is the term for the cap rail, but first I need to add the boards that cover the aft end of the hull planking. I don’t know if this is a universal term, but I know these as chiri. They are decorative, but also protect the end grain of the hull planks.

Continue reading →

Utasebune 打瀬船 Fishing Boat – 1/72 Scale Model from Paris Drawings – Part 3

Posted on by
1

It’s been a busy few days for the Utasebune project. This is a really good thing, as I haven’t made much model progress over the past several months, and I’ve found that the Japanese boat models I make at this small scale tend to progress rapidly. There’s really not that much to say about the current progress, as I’m now basically cutting and fitting the upper beams and deck boards.

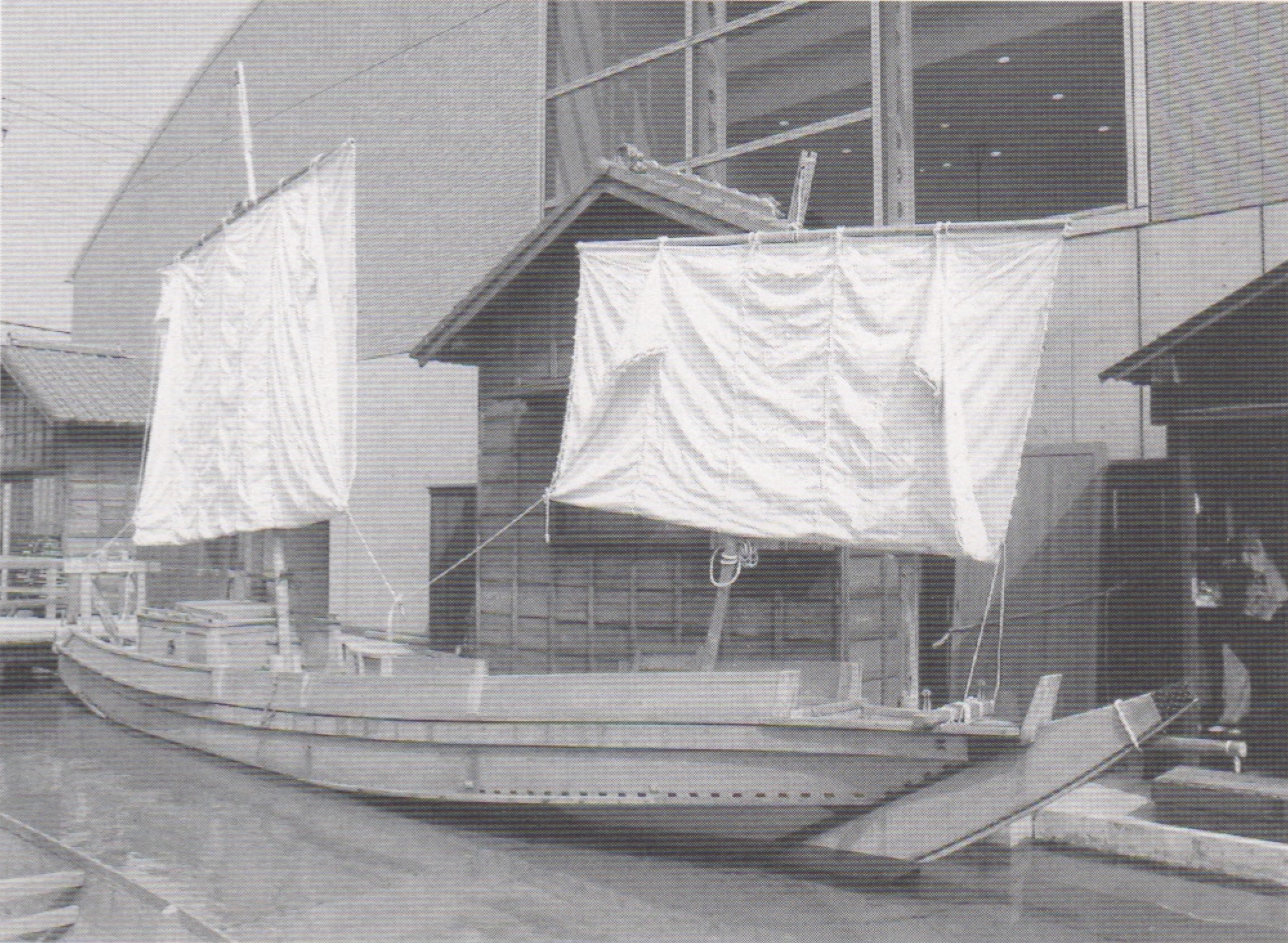

Late period Utasebune at the Urayasu City Museum.

There is quite a bit of review of the hull details I can do here, but I’m mostly trying to focus on getting this model completed. At a future date, I may sit down and do a more thorough writeup of the details show in the Paris drawings, and how they relate to some of what I have learned about Japanese watercraft in general, and fishing boats, specifically.

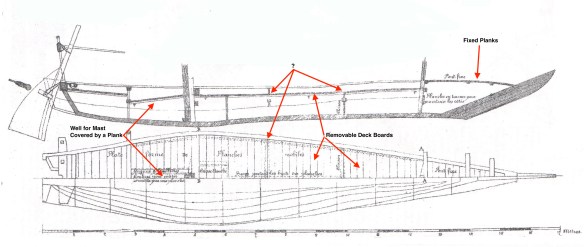

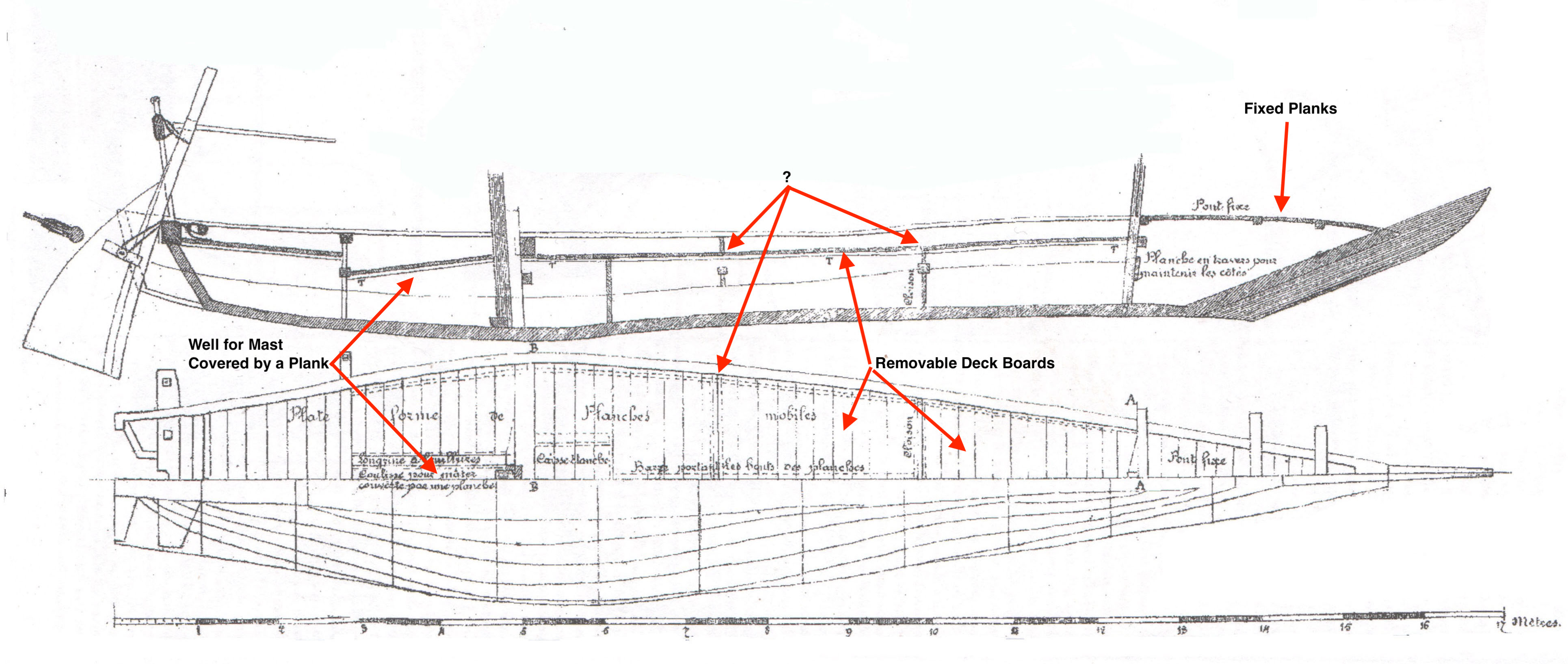

Hull details from the Paris drawings. I’ve labeled some general items. The items marked with the question mark “?” are features where I’m not quite sure how they manifest themselves on the deck. Rather than go into a lot of explanation here, in later photos of my model, you can see how I dealt or didn’t deal with them.

Continue reading →

Utasebune 打瀬船 Fishing Boat – 1/72 Scale Model from Paris Drawings – Part 2

Posted on by
Reply

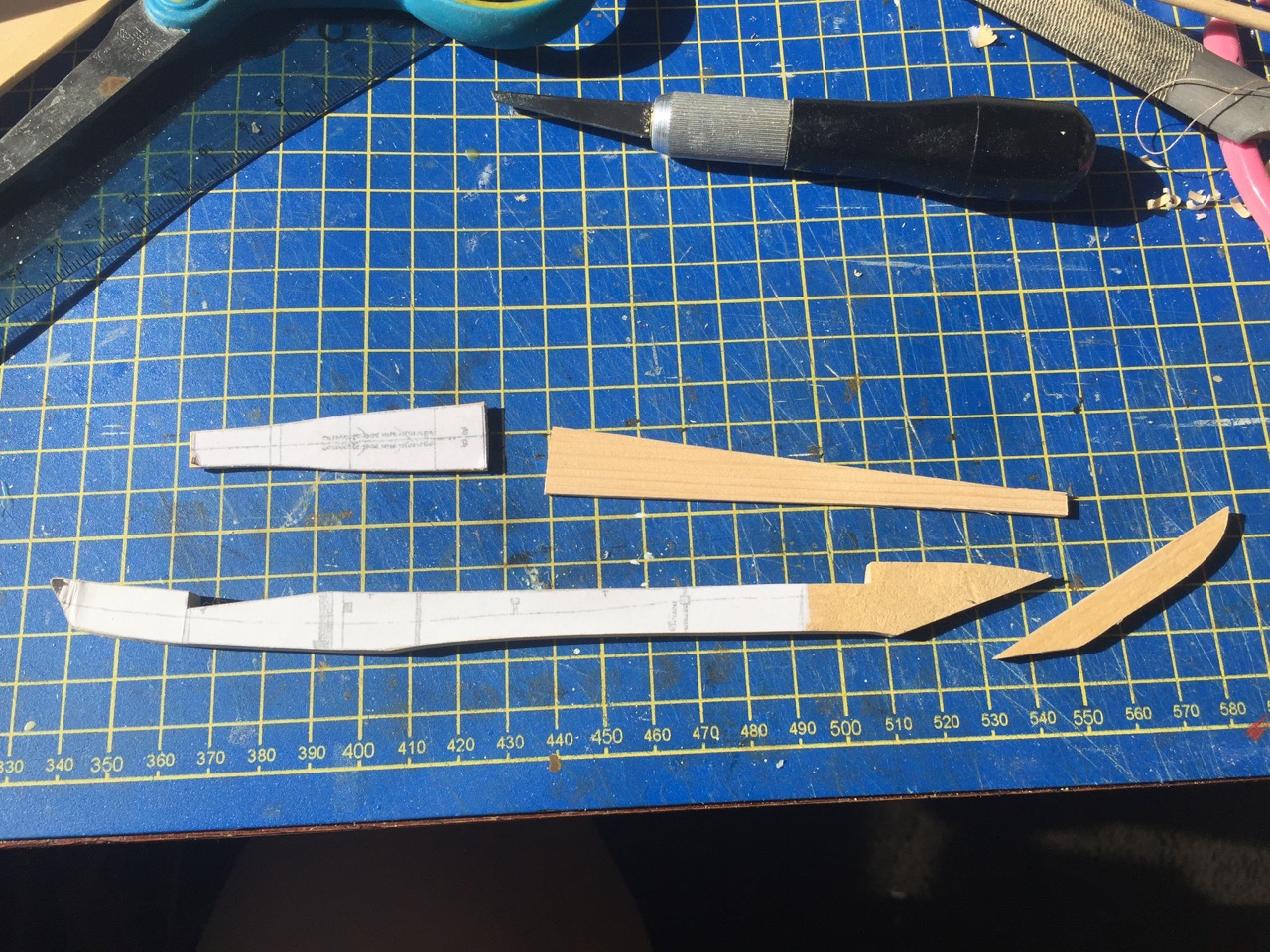

When there are available drawings, if at all possible, I’ll scale them and print them out to use as patterns for the shaping of the shiki, or the hull bottom, and the miyoshi, or stem, and also to create some kind of temporary former to simplify the shaping of the hull. I make copies of the drawings, cut them out, and glue them directly to the wood.

For this small model, with its completely enclosed deck, a removable internal former seems unnecessary. So I’m going to do the same as I did for the first Japanese boat model I built from Paris drawings and build it with a permanent internal frame. This frame consists of a strong back and a couple bulkheads that define the shape of the hull planking.

Continue reading →

Utasebune 打瀬船 Fishing Boat – 1/72 Scale Model from Paris Drawings – Part 1

Posted on by
Reply

The Souvenirs de Marine is a multi-volume collection of drawings that are the basis for many of the models in the French National Maritime Museum. The book was put together by Edmond Pâris and originally published in the 1880s. Among the collection of drawings of watercraft from around the world are several Japanese boats that were recorded by French Lieutenant Armand Paris, mostly in the areas of Osaka and Edo in the 1860s.

These drawings provide the only detailed records of some of the watercraft depicted. These include large coastal transports, fishing boats, pleasure boats, a large yacht owned by one of the many feudal lords, a row galley in the service of the Shogun, etc.

Now, I’ve built a model of the row galley, which is referred to in Japanese as a Kobaya, though there are some features that I feel that the drawing is missing, as the ship was out of service for some time and in disprepair, following the fall of the Shogun’s government many years earlier. So, that model remains technically unfinished.

However, there is an intriguing looking fishing boat that’s detailed in the available drawings. The boat is only described as a fishing boat, but it is quite large at 17 meters long, a little over 55 feet. But, what stands out the most is the unusual downward turn of the bow. This is the first time I’d seen this kind of feature. But, it turns out that it wouldn’t be the last time.

Continue reading →

Building a Gozabune (Kobaya) from Paris Plans – Part 13

Posted on by
4
An update on this model is long overdue, and while I haven’t really been working much on the Kobaya model, it is a model that I’ve been very happy with. I’ve recently been researching old drawings, looking for atakebune information, but mostly finding sekibune and other small ships. As a result, I’ve found something of a renewed interest in finishing my kobaya model, and started working on it again.
The model keeps inching closer to completion, with the biggest hold-up being the making and mounting of the ship’s 28 sculling oars. Given the size of a person on the model, the deck would have been crowded with oarsmen. With such a sharp hull and relatively small size (17m) in comparison with the largest of ships at the time (30m, give or take), those 28 oars must have made her very fast.
However, Japanese sculling oars are more complicated in shape than western-style oars, so this project involves cutting and shaping 56 pieces of wood, plus the addition of bindings, handle, and mounting yoke onto each oar. So, I have my work cut-out for me.

Continue reading →

“Fune” Build by Alexandru Gurau

Posted on by
Reply

Years ago, ship modeler Alexandru Gurau of Canada had been building a model of a bezaisen, an Edo period coastal transport, based on drawings recorded by French lieutenant Armand Paris, and recorded in the book Souvenirs de Marine.

I was particularly impressed by Mr. Gurau’s work, as the information contained in the Paris drawings are a bit difficult to follow on their own. My own experience with the building a model from Paris drawings resulted in my own Kobaya project. In that particular case, I had discovered that the drawings may have been somewhat incomplete as they were based on vessels that were no longer in use and seemed to be missing features. I believe that problem was unique to that particular vessel, and the other Japanese boats recorded in the book appear complete. Still, not always easy to decipher all the information needed. Not to mention that the note contained in the drawings are handwritten in French.

Still, for the larger subjects in particular, like Mr. Gurau’s Fune model, It just seems difficult to wrap one’s head around the details due to the unusual nature of the hulls of these coastal transports – unusual to the western eye, anyway.

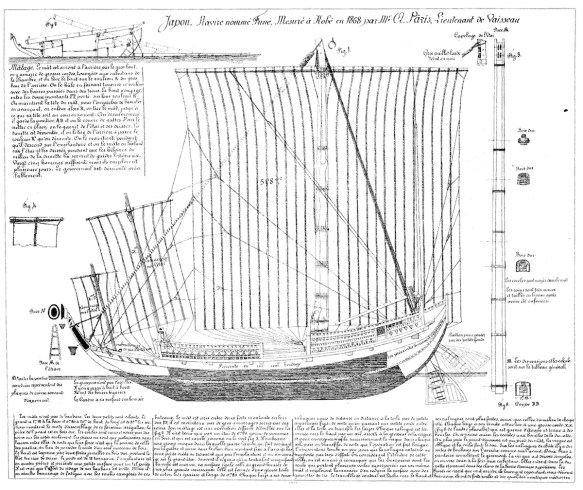

Scan of what Paris describes simply as “Fune”, recorded at Kobe, Japan, in 1868.

The Mr. Gurau’s model was mostly completed in 2013-2014, but he recently updated some things, which brought the model back to my attention. His dealing with the sails of the vessel have given me new inspiration to complete the sails of my own kitamaebune model, which is based on a kit from Woody Joe.

His build photos are available to view on his personal ship modeling website here:  http://www.alexshipmodels.com/2016/10/28/fune-build/

He also documented the build on The Nautical Research Guild’s Model Ship World (MSW) online forum here: https://modelshipworld.com/topic/3230-fune-by-alexandru-finished-japanese-ship-of-1868-scale-150/#comments

The one thing to note on the MSW forum’s topic title and first entries say that the model is built at 1/50 scale, but it appears that his model was actually built in 1/100 scale.

In any case, it’s nicely done and worth checking out. Ω

Building a Gozabune (Kobaya) from Paris Plans – Part 12

Posted on by
2
Work on the Kobaya is moving forward again. While coming up with a way to deal with the decorative patterns on the hull has held me up, I did have some ideas. But, the best I could think to do required the use of a new tool, and it took me a while to bight the bullet and buy it.

Note the pattern of the chain of hexagons and what look like little sunbursts in the Paris drawings.

The solution I came up with was to either create a mask for painting or possibly for the application of gold leaf, or to simply cut a pattern that was itself gold leafed. This probably sounds more complicated than it turned out to be. The central part of the solution turned out to be the use of a vinyl cutter, like those used in scrapbooking.
After looking at a few of the leading models, I finally made the leap and bought a Silhouette Cameo 3. I found one for about $200 online and spent another $150 or so on materials and accessories.
The closest competitor to this was the Cricket Maker, but it was more expensive and the drawing software was only usable online, requiring an internet connection to use. Having Internet is not an issue, but requiring it to use my own hardware or even to create drawings was not an idea I like supporting.
I was able to test out Silhouette’s drawing software for the Cameo, which was available as a free download from their website. That allowed me to determine that I would at least be able to create drawings of the things I needed it to cut.

Continue reading →

Building a Gozabune (Kobaya) from Paris Plans – Part 11

Posted on by
Reply
A yakata for the kobaya?
I’ve been looking at the yakata, or deck cabins, on the paintings of kobaya. Also, there is one from a larger gozabune that was removed and restored and on display at the museum at Kumamoto Castle. I’ve been in touch with ship modeling colleagues in Japan and they told me that it is from a ship called the Naminashi-maru (波奈之丸).

The restored yakata from the Naminashi-maru at the museum of Kumamoto Castle.

I’m still very confused about the dimensions. To me it looks very low, but I’m told the lower level is 1.7 to 2 meters high on the inside. Part of this, I assume is because the floor is below deck level, which is the case on my kobayabune.
To aid in design of the yakata, I’ve fitted a removable cardboard structure. This gives me a sense of size and appearance. I can’t really add the structure without the attendant framework over the whole ship for an awning.
I drew in some outlines for sliding doors and a railing atop the structure. Apparently, the passengers would also sit atop the structure. I’m not sure how they would climb up, but I’m assuming it would be with a “leg up” from one of the attendant samurai on the deck.

Continue reading →

Building a Gozabune (Kobaya) from Paris Plans – Part 10

Posted on by
Reply
It’s been well over a month since I last posted my progress on the Kobaya-bune. And, while it doesn’t look much different, I did complete the deck planks and gave the hull a couple coats of gloss polyurethane, in an attempt to simulate the lacquer used on the real vessel.

I must have put on thick coats, because the surface has been tacky for a while. It doesn’t help that the weather is a little on the damp and cool side. No matter, I’m not really prepared for the next step, which is to add the decoration, as well as the metal mortise covers, etc.

Continue reading →
