Sailmaking is at somewhat of a standstill, as I’m experimenting with different techniques for representing the large sails of the kitamaebune in 1/72 scale. There are number of possible things I can try,, including simply stitching the seams as one might do for a western ship’s sails, but I’m still hoping I can show some of the characteristics of the Japanese sails.This is something of a long term process, so in the meantime, I decided to move ahead with some of the other model details.

One of my sail making attempts still being tested and considered.

It had occurred to me that might make the most sense to go ahead and build the various components of the main stay. It took me a while to figure out this is called the Hazuo in Japanese.

Dealing with the stay, or hazuo, requires making/rigging four different parts. Here’s the section of the instructions that deal with this.

Continue reading →

I’m now in the final stages of the building of Woody Joe’s Kitamaebune model kit. I’m working on the sails and rigging and dealing with a few small remaining details.

The kit sails are very nice, and have the sail seams and lacings printed on them. From a normal viewing distance, they look great, and I’ve gotten compliments from those who glanced at them and thought I’d stitched them. But, I’m going to need a main sail as well as one at the bow and I want them to match. The only way to do that is to make them both.

The big issue is that I’d love to be able to detail the Japanese-style sails, which are made of separate panels that are laced together. The design is such that the sails are effectively self-reefing, so that they spill the wind when it gusts. This design is more apparent on sails of smaller vessels, and I don’t know if the lacing between all of the panels are that way, or just between the four large groups of panels. But, you can see the idea in a pair of photos from ModelShipWorld member marcjp, who lives in Osaka, Japan, and took these photos of the museum ship Naniwa Maru.

Continue reading →

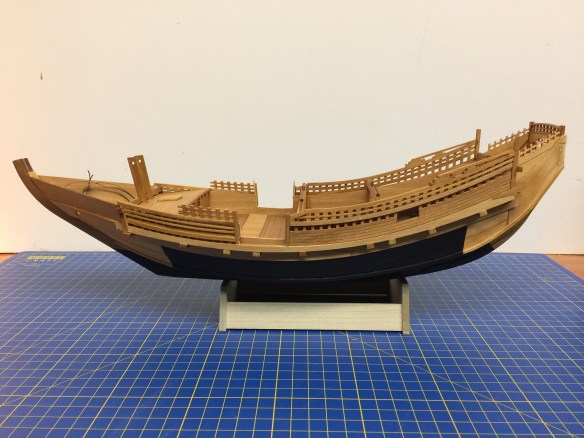

I’ve finally made significant progress, though most of it doesn’t really show, as so much is in the small details – the simulated copper coverings are finally done!

This took me a while as I kept thinking I was done. Then, I’d think some more and realize there was some other feature I wanted to add. I’d no sooner finish that, than realize I really should add yet another feature. This cycle has repeated itself many times, but I think it’s over now, and I can put that equipment away.

The next item I decided is pretty straight forward and related to the vinyl “coppering” details. Often times, the coastal transports, known generally as bezaisen, are shown with nail heads in the bulwarks fences. Adding these at this scale may be a mistake, but I’ve started down the road – No turning back now. I drilled out all the necessary holes which will be plugged with some 22 gauge copper wire. I intend to blacken the wire using liver of sulfur.

Holes were drilled out and I started the process of making copper “nails”. The heads have to be flat, so I filed the end of the wire and then cut the “nail” off.

Continue reading →

More and More Copper Details…

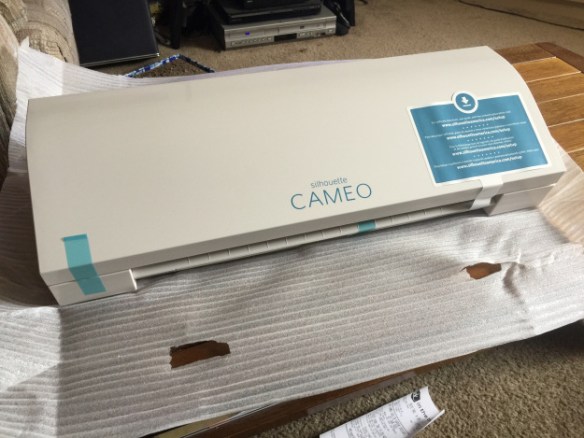

This project stalled a bit while I was adding the copper coverings detail, which I’ve actually been making using brown permanent adhesive vinyl that I laid out and cut using my Silhouette Cameo 3 machine. The slow down is simply due to the amount of small details I’ve been feeling I need to make.

As I’ve written earlier, I reproduced the kit-provided shiny copper pieces with vinyl ones using the Cameo’s feature called PixScan, which allows me to use a specially marked mat on which the parts are placed and to take a photo of the them. This gets imported into the Silhouette Studio software and I am able to recreate the parts from the photo.

Part of the process is automated, but it works much better for larger objects. The small parts in this kit require that I do a lot of editing to sharpen up and straighten up the cut lines.

Woody Joe product image of the completed Kitamaebune kit.

In addition to those parts, I’ve been studying my photos of the Hakusan Maru, the kitamaebune on Sado Island, to figure out what other copper plates I need to make. There are a LOT of copper coverings on these ships, so the project seemed a bit overwhelming. Each part had to be measured on the model, which does not correspond exactly to this particular ship, and drawn in the Silhouette Studio software. Then, the Cameo cutter was set up with a piece of the same brown colored vinyl on a light adhesive cutting mat, loaded up, cut, unloaded, vinyl removed from the mat, mat put away to keep it clean (more like keeping it from getting too dirty). Finally, the pieces are carefully applied to the model.

Stern of the Hakusan Maru on Sado Island showing all the copper plates and the iron work on the rudder.

Bow of the Hakusan Maru on Sado Island showing lots of small copper plates on the real ship.
